Kolida K30

(1 customer review)

Kolida K30
With 1598 channels, a colorful touchscreen and a 60° IMU tilt sensor the Kolida K30 is a very powerful RTK GNSS receiver. Every surveyor should have operated a Kolida receiver at least once in their life.

Kolida K30 PRO
The Maxwell 7 GNSS engine inside K30 PRO provides an ultra-fast positioning speed, typically it starts tracking satellite signal within 5 seconds after turning on, coordinate can be acquired within 10 seconds.

Channels 336 / 1598
IMU Tilt Sensor 60°
  Internet Modem 4G
UHF Radio 410 – 470MHz
GPS L1, L1C/A, L2C, L2P, L5
GLONASS G1, G2
GALILEO E1, E5A, E5B, E6, AltBOC
BEIDOU   B1I, B2I, B3I, B1C, B2A, B2B

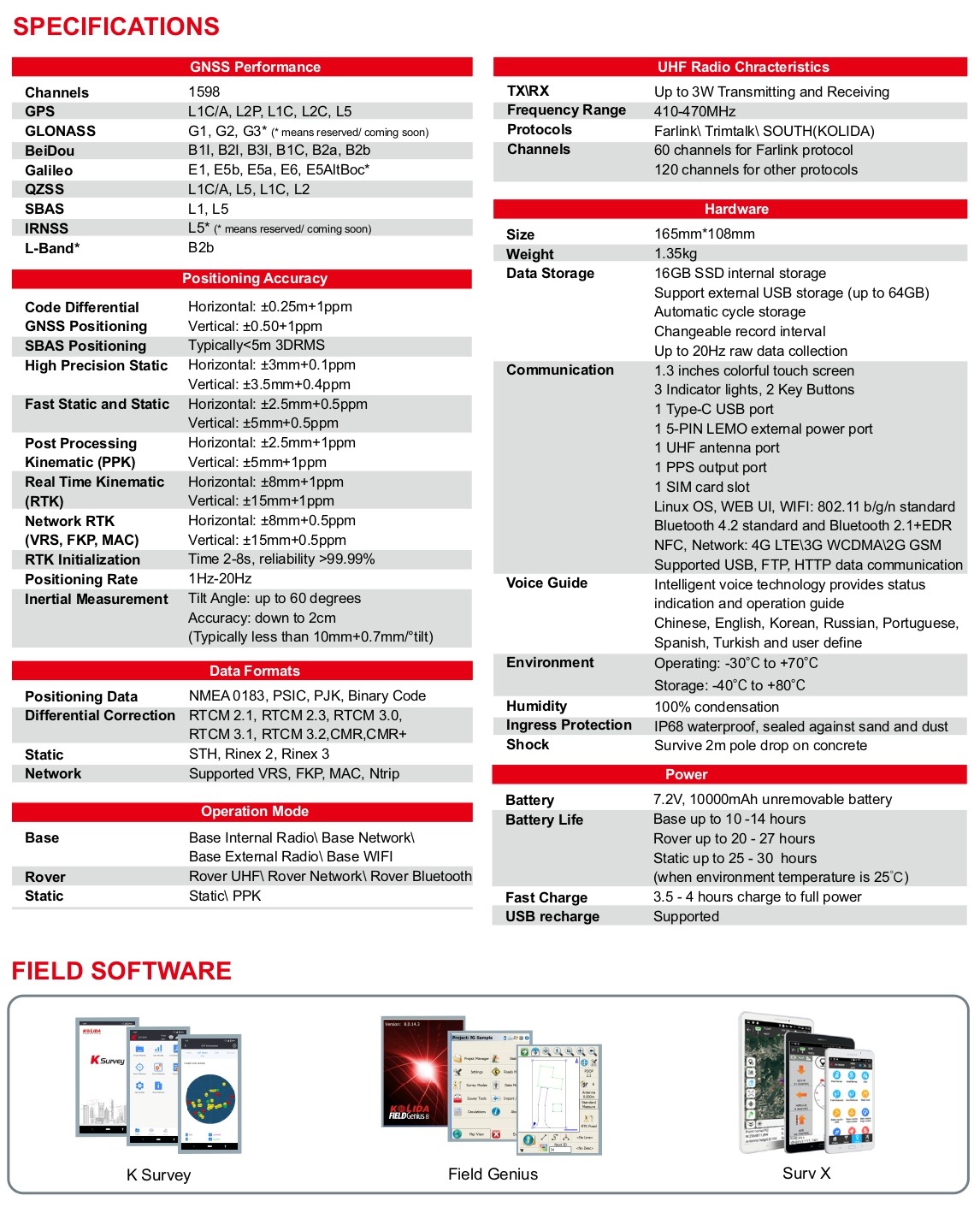

Datasheets and manuals

RECOMMENDED DATA COLLECTORS:

Login to view prices

Click here to login or register
Login to view prices

Click here to login or register
Login to view prices

Click here to login or register
Login to view prices

Click here to login or register

RECOMMENDED SOFTWARE:

Login to view prices

Click here to login or register
22%
Login to view prices

Click here to login or register
Login to view prices

Click here to login or register
Login to view prices

Click here to login or register

RECOMMENDED ACCESSORIES:

Login to view prices

Click here to login or register
Login to view prices

Click here to login or register
27%
Login to view prices

Click here to login or register

Kolida K30

SKU: kolida-k30 Categories: ,
Brand:Kolida

Global GPS Systems
What Our Clients Say
4.76 store rating (543 reviews) | 4.65 product rating

Ads1

FREE RTK CORRECTIONS - Join the NTRIP CAster

Description

Kolida K30 Product Review

Unboxing the Kolida K30



Kolida K30





Kolida K30 PRO







More Channels are Available

The integrated advanced 1598-channel GNSS technology helps K30 to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.

More Freedom to Operate

K30 has a colorful touch screen, users are able to operate GNSS receiver like their smart phone. Using both of touch screen and key buttons will make your workflow easier and faster.

Down to 4-10 cm Positioning by L-band

Thanks to the newly developed BDS correction service, K30 is able to receive B2b signal via L-band, and perform a single point positioning precisely without base station. It is a great help to surveyors who work in particularly difficult areas. This service is available in 2022 in Asian-Pacific region.

New Radio, Farlink Tech.

Farlink technology is developed to send large number of data and avoid data loss.

This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).

Working Longer, Stop Less.

Thanks to the low consumption operation system design, K30 can work up to 10 hours in RTK base mode and up to 25 hours in rover mode, up to 27 hours in static mode. (Environment temperature is 25℃).

K30 can be recharged by Type-C USB connector.

Constantly Upgraded Inertial Measurement

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it…

Tilt angle is up to 60 degrees, accuracy is down to 2-3cm (when tilt angle is within 30°), 5cm (tilt angle within 60°)

Ads2
Additional Information

Additional Information

Brand

Kolida

Accuracy level

Centimeter accurate

GNSS Board

336 channels, 1598 channels

GPS

L1, L2, L5

Glonass

G1, G2, G3

Galileo

E1, E5, E6, AltBoc

BeiDou

B1, B2, B3

Internal internet modem

4G Modem

Radio configuration

Internal radio

Radio frequency

410-470 MHz

Radio protocol

Farlink, Kolida, SOUTH, TrimTalk

IMU Tilt Sensor

Yes

Battery type

Internal

IP Rating

IP68

Weight

1.33 kg
