AR Vision Stake-Out: How Augmented Reality Makes GNSS Stakeout Easier in the Field

AR vision stake-out is changing the way surveyors and construction professionals find points in the field. Instead of only following arrows, numbers and distance values on a controller screen, the operator can see visual guidance over a live camera view of the real site.

For many users, this makes stakeout more intuitive. The software can show where the design point, line, road feature, utility route or layout position is located in relation to the ground in front of them. This helps the operator walk toward the correct location faster and with more confidence.

AR vision stake-out does not replace good surveying practice, correct coordinate systems or reliable RTK positioning. It is a visual guidance tool that works together with GNSS, RTK corrections, IMU tilt compensation, field software and design data.

Quick answer: what is AR vision stake-out?

AR vision stake-out is a GNSS stakeout method that uses augmented reality to show stakeout guidance on top of a live camera image. The user sees the real field environment on the controller or receiver screen, while the software displays virtual markers, arrows, points, lines or design information in the correct direction.

In practical terms, AR vision stake-out helps the operator answer a simple question: where do I need to walk, and where is the point in the real world?

This is especially useful when working with many points, complex layouts, road designs, utility networks, building corners, kerb lines, trenches, slopes or construction features that are difficult to understand from a 2D map alone.

How does AR vision stake-out work?

AR vision stake-out combines several technologies that are already common in modern survey equipment. The GNSS receiver calculates the position of the pole or receiver. RTK corrections improve the position accuracy. The camera provides a live view of the site. The field software combines this information with design data and displays visual guidance on the screen.

Depending on the equipment and software, the camera may be built into the GNSS receiver, built into the field controller, or used as part of a vision-enabled receiver system. The exact workflow depends on the receiver, controller, software and manufacturer.

Component	Role in AR vision stake-out
GNSS receiver	Calculates the field position using satellite signals.
RTK corrections	Improve the GNSS position for survey-grade stakeout work.
Camera	Shows a live view of the real site environment.
IMU tilt compensation	Helps measure or navigate while the pole is tilted, depending on the receiver capability.
Field software	Loads points, lines, CAD data or design files and displays AR guidance.
Coordinate system setup	Ensures the design data and field measurements use the correct reference system.

What does the operator see on the screen?

In a traditional GNSS stakeout workflow, the operator usually follows a map view, compass, arrows, northing/easting offsets and distance-to-point values. This works well for experienced surveyors, but it can be slower for new users or for crews working on complex sites.

With AR vision stake-out, the screen can show the point location in relation to the live camera image. The operator may see a target marker, direction arrow, line, distance value or visual overlay that guides them toward the correct position.

The main advantage is not that the GNSS receiver becomes more accurate simply because AR is used. The advantage is that the operator can understand the direction and location faster. AR helps translate coordinate-based stakeout information into a real-world visual guide.

Why AR vision stake-out matters in surveying and construction

Stakeout is one of the most important field tasks in surveying and construction. Crews use stakeout to transfer digital design information from drawings, CAD files or coordinate lists onto the physical site. If stakeout is slow or confusing, layout work can delay excavation, concrete work, road construction, utility installation or machine-control preparation.

AR vision stake-out helps reduce the gap between office design data and the real construction site. Instead of interpreting only a plan view, the operator can see the approximate location of the design point in the actual field environment.

This can be valuable when the site contains many similar features, when the point is not obvious from the map, or when the operator needs to navigate around obstacles such as fences, stockpiles, trenches, traffic, vegetation or machinery.

Typical AR vision stake-out workflow

The exact workflow depends on the equipment and software, but most AR vision stake-out jobs follow a similar process.

1. Prepare or import the design data, such as points, lines, DXF files, road data or project coordinates.
2. Check that the correct coordinate system, geoid model and project settings are selected.
3. Connect the GNSS receiver to RTK corrections from a base station, radio link or NTRIP network.
4. Open the stakeout function in the field software.
5. Select the point, line or design feature to stake out.
6. Use the normal map, compass or offset view to navigate close to the target area.
7. Switch to the AR or vision stakeout view when visual guidance is useful.
8. Follow the on-screen marker or direction guide until the pole tip reaches the required position.
9. Check the final offsets, position quality and tolerances before marking the point.
10. Store the as-staked point or report data if required for documentation.

Where is AR vision stake-out most useful?

AR vision stake-out is most useful when visual context makes the field task easier. It can help experienced surveyors work faster, but it is also helpful for construction crews and layout teams who may not work with coordinate systems every day.

Construction layout

On construction sites, AR vision stake-out can help crews find building corners, grid points, anchor bolt positions, foundations, kerb lines, drainage features and utility routes. The visual overlay makes it easier to understand where the design point sits in relation to existing site features.

Road and infrastructure projects

Road layouts often include many points, alignments, offsets and design elements. AR guidance can help the user move toward the correct chainage, offset or feature more intuitively, especially when the site is busy or the 2D map view is crowded.

Utility and trench work

For utilities, pipelines, cables and drainage, AR vision stake-out can help crews follow a planned route in the field. It is especially useful when a line crosses open ground or when there are few visible reference features.

Urban and congested sites

On urban sites, the operator may need to work around walls, kerbs, parked vehicles, traffic, fences or existing structures. AR visual guidance can make it easier to identify the target direction without constantly switching between the screen and the site.

Training and mixed-experience crews

New users often find visual guidance easier than interpreting coordinate offsets alone. AR vision stake-out can help less experienced operators understand where to move, while still allowing supervisors to check accuracy, quality and project settings.

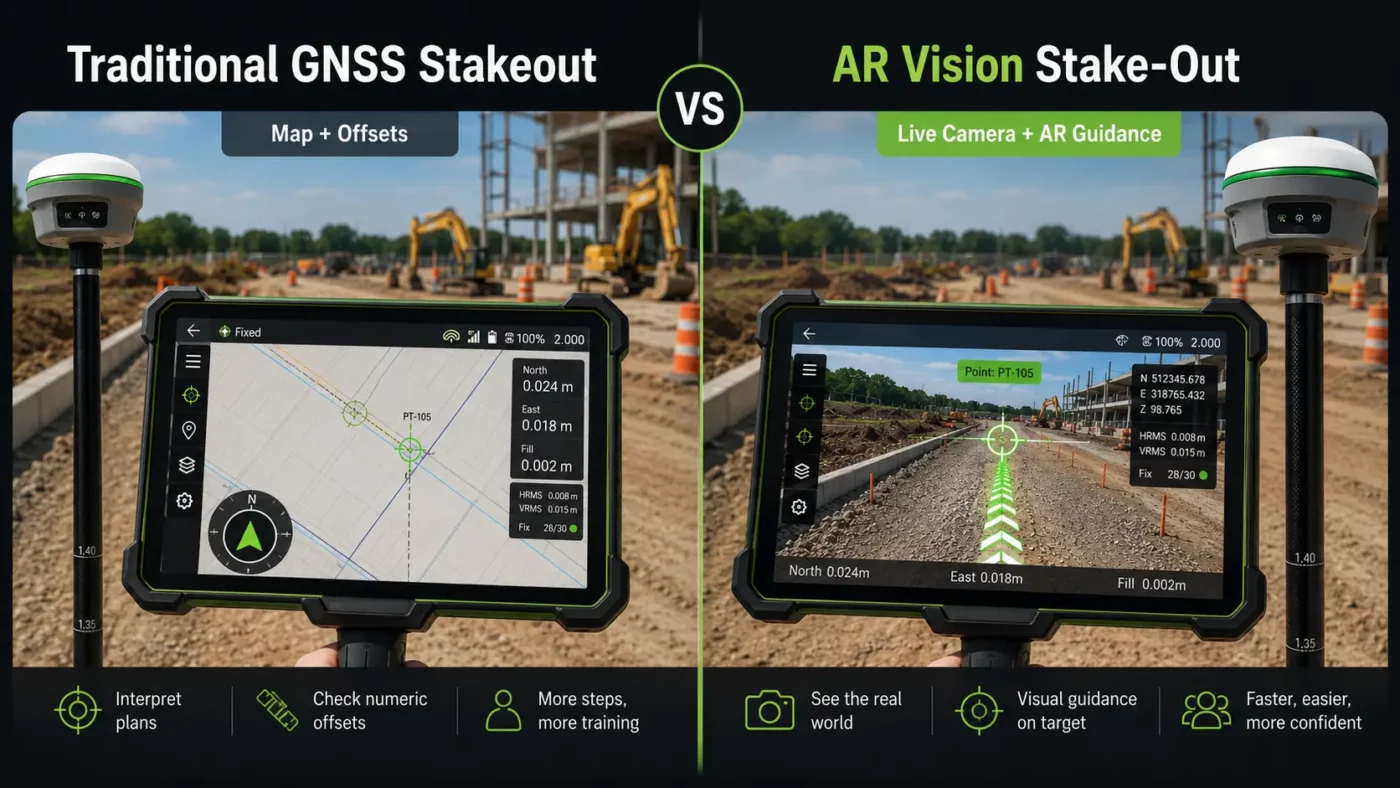

AR vision stake-out compared with traditional GNSS stakeout

Feature	Traditional GNSS stakeout	AR vision stake-out
Navigation style	Map, arrows, compass and offset values.	Live camera view with visual markers or overlays.
Ease of understanding	Very effective, but may require more field experience.	Often easier for users who prefer visual guidance.
Best use	General stakeout, open areas, experienced survey workflows.	Complex sites, dense layouts, construction crews and visual navigation.
Accuracy source	GNSS, RTK corrections and project setup.	GNSS, RTK corrections and project setup. AR mainly improves visual guidance.
Limitations	Can be harder to interpret in busy or confusing environments.	Depends on camera view, software support, calibration and field conditions.

Does AR vision stake-out improve accuracy?

AR vision stake-out mainly improves guidance and usability. The final survey accuracy still depends on the GNSS receiver, RTK correction quality, satellite conditions, multipath, pole setup, IMU performance, calibration, coordinate system settings and the quality of the design data.

This is an important point for buyers. AR can make it easier to find the point, but it does not remove the need to check the final offset values, RTK status and measurement quality. A visually clear marker on the screen is only useful when the underlying positioning and project setup are correct.

For professional stakeout, the operator should still check whether the receiver has a fixed RTK solution, whether the coordinate system is correct, and whether the required tolerance has been reached before marking the point.

What should you check before using AR vision stake-out?

Before relying on AR vision stake-out on a project, it is important to check the complete system, not only the AR function. The receiver, controller, software, corrections and design files all need to work together.

• Software support: Check whether your field software supports AR stakeout, visual stakeout or camera-based stakeout.
• Camera setup: Check whether the camera is built into the receiver, the controller or another supported device.
• Design file compatibility: Confirm whether the software can import the required points, DXF, DWG, LandXML, road data or other project files.
• Coordinate system: Make sure the project coordinate system, geoid and units are correct.
• RTK correction method: Confirm whether you will use NTRIP, a local base station, UHF radio or another correction source.
• Field visibility: Bright sunlight, rain, dust, camera angle and screen brightness can affect how easy the AR view is to use.
• Training: Operators should understand that AR is a guidance aid, not a replacement for survey checks.

Limitations of AR vision stake-out

AR vision stake-out is useful, but it is not perfect in every field situation. The camera view can be affected by lighting, weather, obstacles or screen visibility. In some cases, a traditional map or numeric offset view may still be faster.

AR overlays also depend on correct position and orientation information. If the receiver heading, tilt compensation, camera alignment or project setup is not correct, the visual guidance may not match the real field position as expected.

Another limitation is compatibility. Not every GNSS receiver, controller or software package supports AR vision stake-out. Some systems require specific receiver models, dual cameras, updated firmware, a compatible controller or a particular field software license. Always check the actual product specifications before buying.

AR vision stake-out and IMU tilt compensation

Many modern GNSS receivers combine AR vision features with IMU tilt compensation. These are related but different technologies.

IMU tilt compensation helps the user measure or stake points without keeping the pole perfectly vertical, depending on the receiver and software capability. This can be useful near walls, fences, trenches, slopes, traffic, stockpiles or other hard-to-reach locations.

AR vision stake-out helps the user visually navigate to the target. Together, these features can make fieldwork more efficient. AR helps the user find the location, while IMU tilt compensation can help with practical pole positioning when the site is awkward. However, both functions must be supported and correctly configured on the equipment being used.

Who should consider AR vision stake-out?

AR vision stake-out is worth considering for surveyors, construction layout teams, civil contractors, GIS teams and infrastructure crews who regularly stake out points, lines or design features in the field.

It is especially useful for teams that want a more visual workflow, crews that work on complex construction sites, or businesses that need to train new field operators more efficiently. It may also help companies reduce confusion between office design files and real site conditions.

For very simple stakeout work in open fields, traditional GNSS stakeout may already be enough. For busy sites, dense point layouts or mixed-experience crews, AR vision stake-out can provide a clearer and more intuitive workflow.

Related Global GPS Systems product categories

Global GPS Systems supplies surveying and construction equipment for GNSS, RTK, total station, drone mapping, LiDAR and machine-control workflows. For AR vision stake-out, the most relevant categories are RTK GNSS receivers, GNSS rover sets, field controllers, surveying software and RTK correction solutions.

When comparing systems, check the full workflow. A receiver may support accurate RTK positioning, but AR vision stake-out also depends on camera hardware, software support, controller compatibility and the type of design data you need to use.
