Spherefix SP30 Rover Base Set Product Review

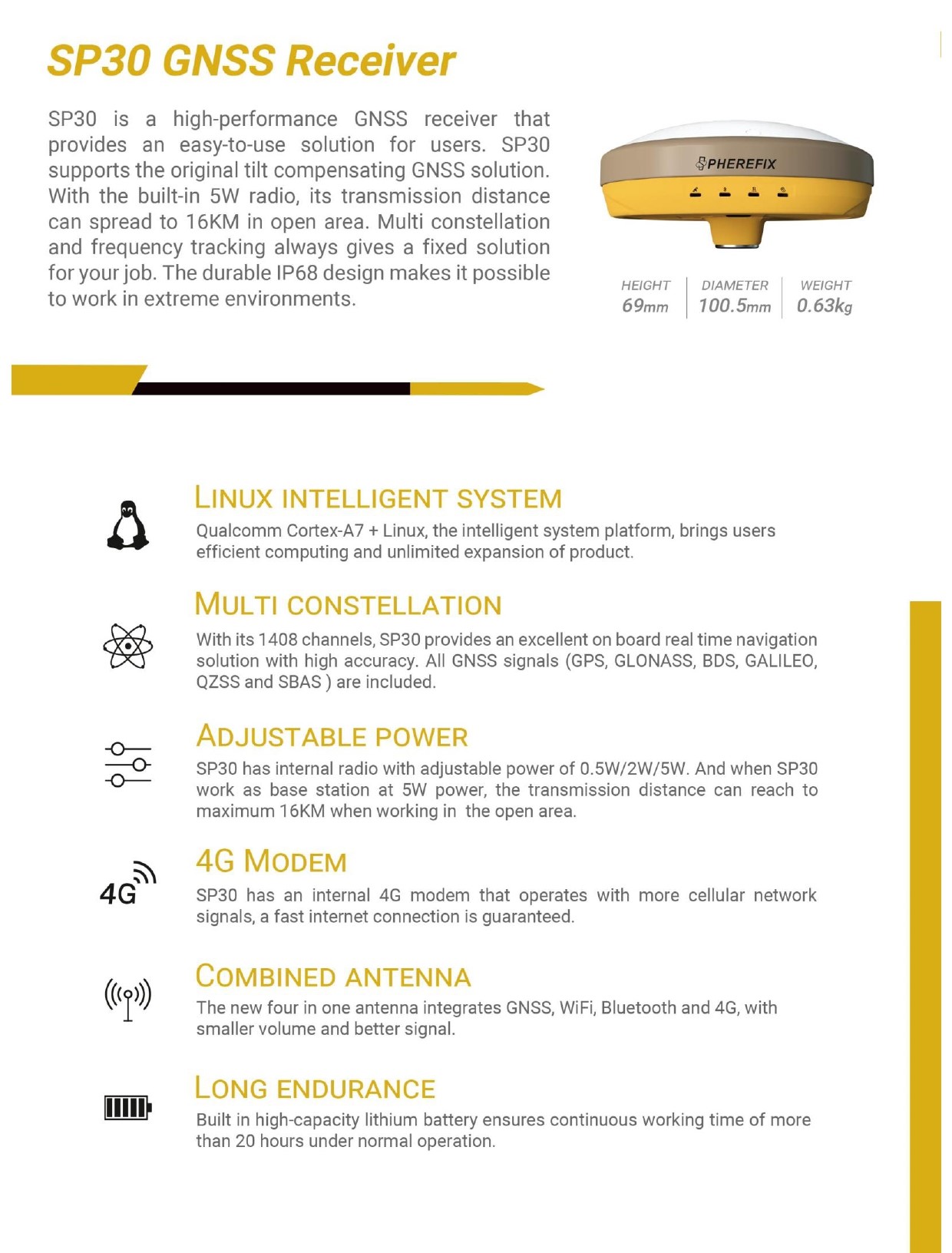

Spherefix has introduced the SP30, a high-performance RTK device boasting an impressive 18-hour battery life, ensuring long-lasting measurement sessions without power concerns. Its built-in 5W transceiver extends the working range, while smart voice prompts streamline operations for increased efficiency. The SP30 supports a comprehensive range of frequencies, enabling it to achieve fixed solutions even in difficult environments.

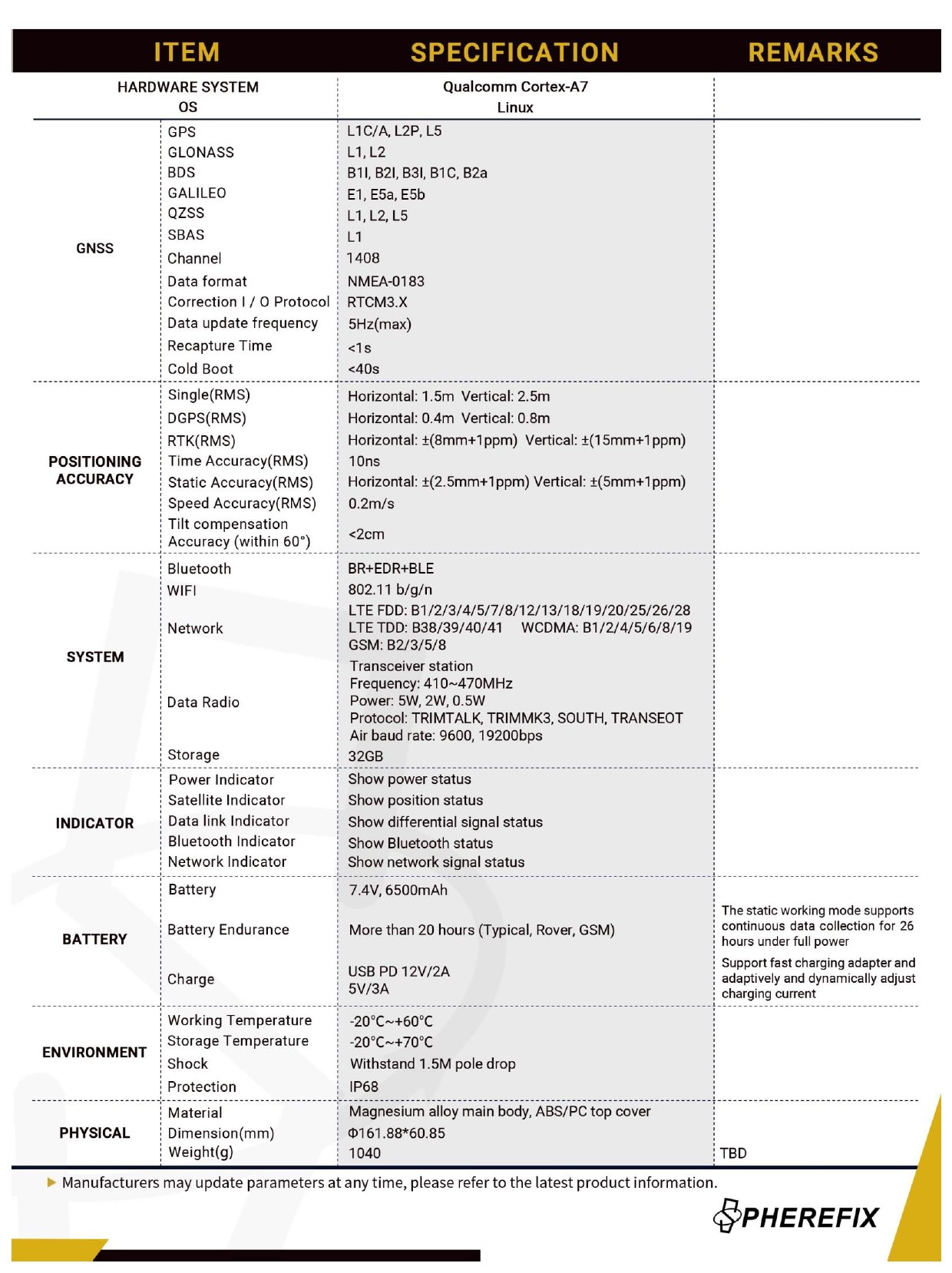

Channels	1408
IMU Tilt Sensor	60º
Internet Modem	4G
UHF Radio	410-470MHz
GPS	L1C/A, L2P, L5
GLONASS	L1, L2
GALILEO	E1, E5a, E5b
BEIDOU	B1l, B1C, B2l, B2a, B3I

Measure directly into your coordinate system with the Spherefix Software

GPS Survey pole

Make it easy to carry by mounting everything on a GPS Survey Pole. Recommended length is over 2 metres to minimise interference to your GNSS receiver and improve performance.

Data collector bracket

This is needed to ensure that your data collector stays firmly in place. It prevents it from being damaged unnecessarily and you don’t have to hold it in your hand all day.

Tripod

Used to set up your base receiver. The 3 legs provide great stability to prevent it from falling or moving.

Tribrach

This is used as a mounting platform for your receiver on your tripod. It also requires an adapter which you can choose in the next step.

Adapter

This is the connection between your tribrach and receiver. You can screw your receiver to the adapter and then place the adapter in your tribrach.
