South Insight V4 Rover Base Set with Visual RTK

Complete rover and base RTK GNSS set for field crews

The South Insight V4 Rover Base Set is designed for professionals who need a complete GNSS setup for accurate RTK measurement and stakeout work. Instead of using only a network rover, this set gives surveyors and construction teams a rover and base configuration for working with their own correction source in the field.

This makes it useful for land surveyors, construction layout crews, civil engineers, utility mapping teams, GIS professionals, public works departments and drone pilots who need reliable ground control or accurate site measurements. It is especially practical when working in locations where RTK network coverage is limited, inconsistent or not preferred for the project workflow.

Rover and base workflow with UHF corrections

The South Insight V4 Rover Base Set supports UHF radio communication in the 410–470 MHz range. In practical fieldwork, this allows the base receiver to transmit correction data to the rover receiver, so the user can work independently from a local base setup.

This is helpful on construction sites, roads, agricultural land, infrastructure projects and remote survey areas where a stable local correction source can make the workflow more predictable. A rover and base set is also useful for teams that need repeatable control on the same project site over multiple days.

1698-channel GNSS tracking for demanding environments

The Insight V4 uses the SOUTH S805 GNSS board with 1698 channels. It supports major satellite constellations including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS. For the field user, this means the receiver can track many satellite signals at the same time, helping maintain positioning performance when conditions are not perfect.

On real jobsites, GNSS signals can be affected by buildings, trees, machinery, embankments and other obstructions. Strong satellite tracking helps surveyors and site teams reduce waiting time and keep moving between different parts of the project.

Dual-camera AR stakeout for easier layout work

The Insight V4 includes dual-camera AR stakeout. The receiver uses front and bottom camera views to guide the operator toward points, lines and curves directly on the controller screen. Instead of working only with numbers, arrows and distances, the user gets visual guidance while moving toward the target.

This is useful for construction layout, road staking, utility marking, boundary work and general point stakeout. It can make stakeout easier for less experienced users while still helping professional surveyors work through many points more quickly.

60° IMU tilt compensation for faster point measurement

The built-in IMU supports tilt measurement up to 60°. This allows the operator to measure points without keeping the pole perfectly vertical every time. In everyday surveying and construction work, this is useful when points are close to walls, fences, vehicles, stockpiles, excavations, kerbs, trenches or other obstacles.

The IMU helps users collect difficult points more naturally and with fewer interruptions. For crews doing repeated measurements or stakeout tasks, this can make the day smoother and reduce time spent carefully levelling the pole at every point.

Visual positioning for hard-to-reach points

The South Insight V4 supports visual positioning for non-contact measurement workflows. This allows users to measure points from images or video when it is difficult, unsafe or inefficient to place the pole directly on the target.

In real field conditions, this can help near busy roads, water edges, excavations, blocked areas, steep ground, rooftops and locations with poor satellite visibility. For surveyors and engineers, visual positioning gives more flexibility when a point needs to be documented but direct occupation is not practical.

3D modelling support for survey and drone workflows

The Insight V4 can support 3D modelling workflows by using ground image data. This is useful for surveyors, GIS teams and drone pilots who want to fill gaps in UAV models or document site details from ground level.

For drone mapping work, ground-based image data can help support areas that are hidden, blurred or incomplete in aerial imagery. For engineering and public works projects, it can help document visible site features, areas and volumes in a way that supports later office processing.

SurvStar field software included

The set includes SurvStar software, giving users tools for RTK measurement, point stakeout, line stakeout, CAD workflows, GIS survey, static measurement, PPK survey, coordinate systems, point management and field data export.

For construction and surveying teams, this means points, drawings and measurements can be handled directly in the field. Users can work with project coordinates, manage measured data, stake out design points and prepare files for office processing without making the workflow more complicated than needed.

Field accessories for a working rover base setup

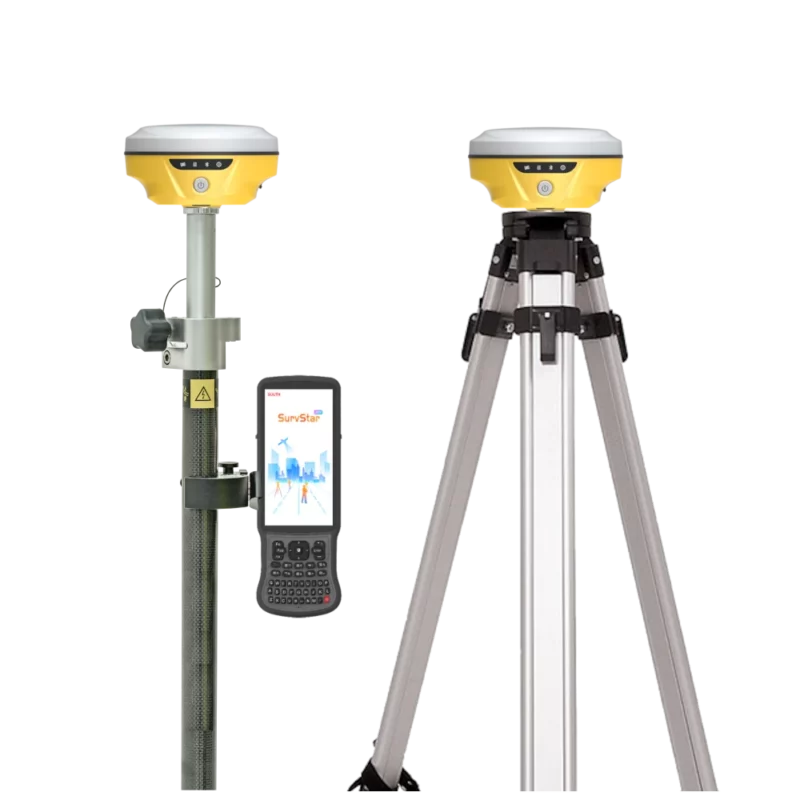

The South Insight V4 Rover Base Set is supplied with the key accessories needed for a practical RTK field configuration. The package includes the South H9 data collector, SurvStar software, surveying pole, data collector bracket, tripod, tribrach and adapter.

For buyers, this is useful because the main components are supplied as one set instead of being selected separately. It gives field teams a clear starting point for daily RTK surveying, construction layout and mapping work.

Who should choose the South Insight V4 Rover Base Set?

The South Insight V4 Rover Base Set is a strong option for users who want their own complete RTK system with modern visual GNSS features. It is especially suitable for survey companies, construction contractors, civil engineering firms, utility mapping crews, GIS teams, road and infrastructure contractors, and drone mapping professionals who need accurate ground control.

It is also a practical choice for teams that work outside reliable RTK network coverage or prefer to operate from their own base station. With AR stakeout, IMU tilt compensation, UHF corrections and visual measurement options, the system gives users more flexibility than a basic rover-only setup.

Buying from Global GPS Systems

Global GPS Systems supplies the South Insight V4 Rover Base Set with worldwide delivery from the Netherlands and support from GNSS product specialists. This is useful for buyers who want help choosing the right receiver setup, controller, software, accessories and correction workflow for their surveying, construction, GIS or drone mapping work.

For teams comparing complete RTK GNSS sets, the South Insight V4 Rover Base Set offers a compact visual RTK solution with rover and base capability, practical field accessories and modern tools for faster measurement and stakeout.
