Kolida KTS-442 UT

1,995.00 Excl. VAT

Kolida KTS-442 UT

1,995.00 Excl. VAT

KTS442R6LC infrared laser total station with advanced absolute encoding angle measurement technology, greatly improving the accuracy and stability of the angle measurement. Boot without initialization, in the measurement if the power off, after the restart still retain the original information, greatly facilitate the measurement workers. At the same time, KTS442R6LC with a circuit board, absolutely international level, completely solve the integration problems with crosstalk, production, maintenance efficiency improved several times. In addition, tight rubber ring waterproof, so that the waterproof and dust level to reach IP56 level.

Datasheets and manuals

Frequently Bought Together

+ + Mini prism 25.4mm, 0:-30mm offset + South ATS MP3 Wood-Fiber tripod
Price for all: 2,534.00

1,995.00 Excl. VAT

SKU: KTS-442UT Categories: ,
Brands:Kolida
Description

Kolida KTS-442 UT Product Review

New Screen Display, Brings You A Clearer Vision!

A series of new display chip, screen and font have been appied to 442UT. Measurement values are displayed clearer and with bigger size. The display performance under low light conditions also is better than before.

Five New Improvements in 2021, to Level Up Your Productivity!

A new central processor unit (CPU) has been used in 442UT, the instrument calculates faster and the battery consumption is lower than before.The built-in memory storage space has been improved from 4MB to 12MB, which can store 96,000 points.

Trigger Key and standard USB port have been added to 442UT.  Battery compartment is with new design and easier to handle.

Measures Longer and longer, Improvement Never Settles!

How could we lift the ranging cabability to a new level of 1000/1500m? The three key factors are “Dual-light Source Distance Measuring technology”, optimization of the signal-to-noise ratio, a more stable objective lens system.

A New Step to be More Accurate, Innovation Never Stops!

Every hard working surveyor deserves a higher precision than before.

Four innovations have been realized in our newly designed optical system to achieve this goal: “Focal Length Compensation Mirror”, “Fully sealed emitting laser circuit”, “Less reflectors in optical part”, “the 4th Generation EDM CPU”.

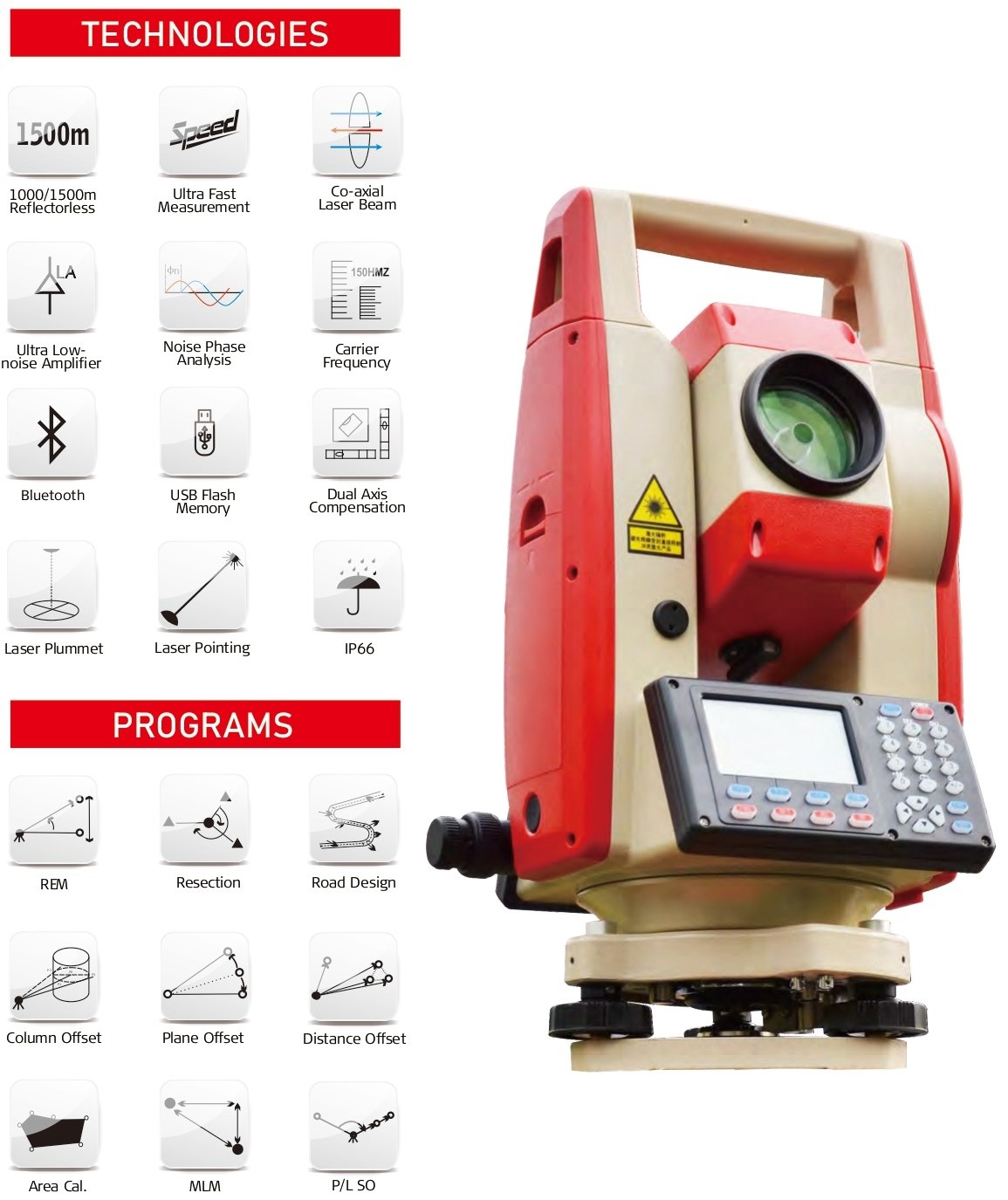

Practical Survey Program

Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc.

Convenient Data Transfer

KTS-442R10 supports SD Card/ Mini USB / Serial port cable/ Bluetooth connection. Special data transmission and editing software can quickly transfer data and save time.

Bluetooth

External device can be linked to total station, through the Bluetooth™ wireless connection. Then users can use their PC/ tablet/ Data Controller with 442 total station and run mapping software to collect data.

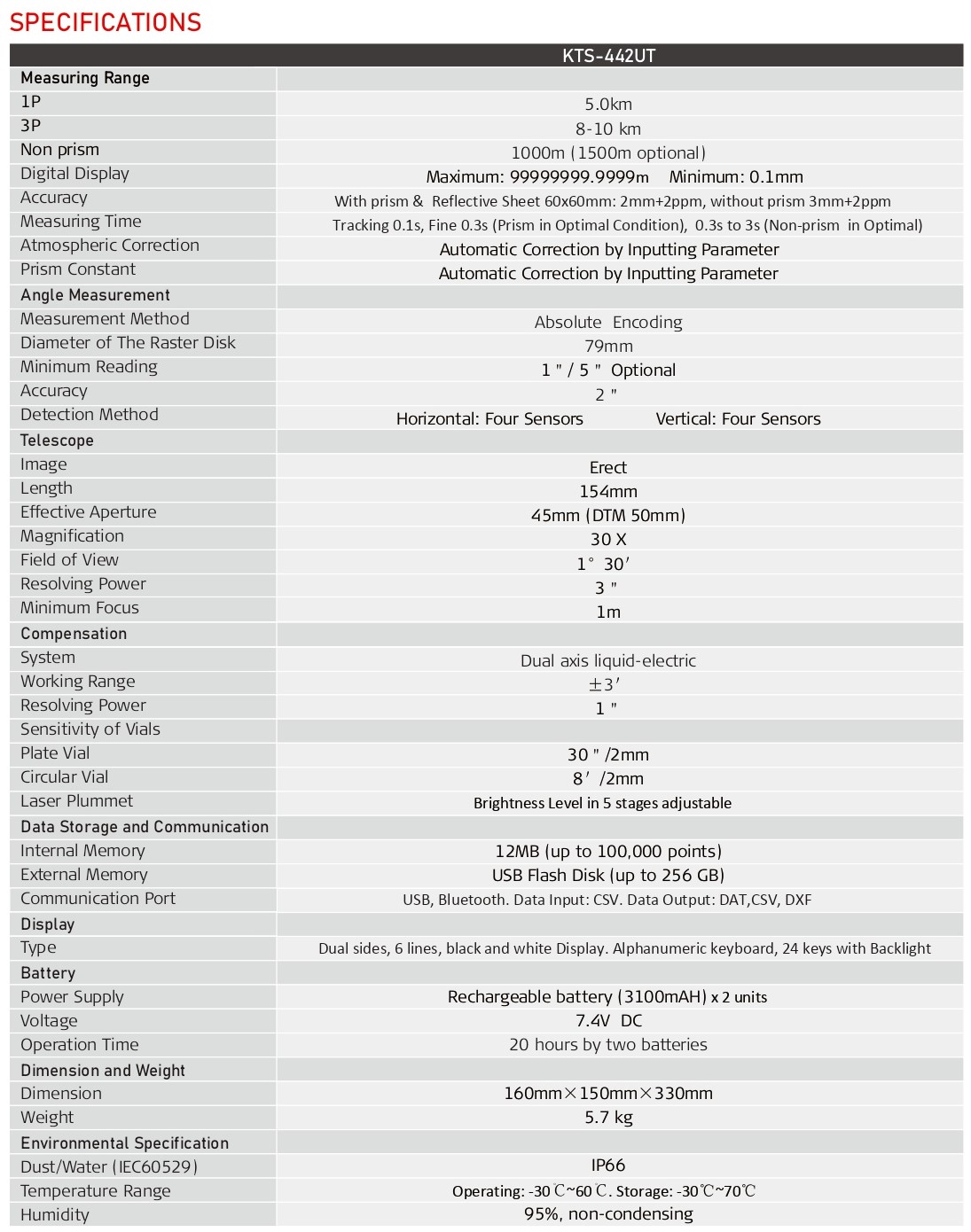

Specification

Kolida KTS-442 UT Specification

Weight 9 kg
Dimensions 40 × 40 × 50 cm
