Emlid Reach RS2 Rover set

From: 1,755.00 1,679.00

  Need help? Ask us a Question
SKU: imlid-reachrs2-rover Categories: ,
Brands:Emlid

Emlid Reach RS2 RTK GNSS receiver is equipped with a 186 channel UBlox GNSS board. In combination with an RTK Subscription this receiver is capable of providing centimetre accuracy in real time. Because The Emlid Reach RS2 supports GPS, Glonass, Galileo, Beidou and QZSS satellite constellations it is capable of achieving this centimetre accuracy in tough conditions. Down below you can find which frequencies it supports. This receiver is also equipped with an 868-915Mhz internal radio. It also has a 3.5G modem so you can use it as a network rover. With the Free ReachView app you can survey points and log RINEX and UBX files.

Reach RS2 needs a base station as a source of corrections. That’s a requirement for centimeter accuracy in RTK and PPK. Base might be either another Reach RS2 receiver or NTRIP service like RTK Direct.

Key features

  • RTK Enabled for 1-2cm accuracy. Compatible with RTK Direct
  • 186 channels
  • GPS, Glonass, Galileo, Beidou and QZSS
  • 3.5G Mobile data
  • UHF radio on 868-915Mhz frequency for rover/base setup
  • Internal battery
  • WiFi
  • USB-C
  • Bluetooth
  • RS-232
  • IP67

What is it used for?

This receiver can be used in all applications where a centimetre accurate position is needed:

  • Surveying
  • GIS applications
  • Earthworks
  • Roadworks
  • Construction
  • Agriculture
  • Mapping
  • Landfill
  • Hydrographic
  • UAV Base Station

Recommended Setup by Manufacturer

Rover setup

When using this device in a rover configuration you may need the following accessories besides the receiver itself

  • RTK Correction service. To achieve centimetre accuracy your receiver will need RTCM correction data so it can calculate your exact position. Without an RTK provider your receiver won’t be able achieve a 1-2 centimetre accuracy.
  • Surveying software. Your receiver provides you with the coordinates you need but you still need surveying software in order to process this information. Which software you need depends on your needs. We recommend keeping it simple and don’t pay for things you don’t need. Having that said, if you do have to do complicated surveying work make sure you get the right software. Some recommended options are Apglos, Carlson, Aplitop and FieldGenius. If you need help, feel free to contact us by phone or via the chat below!

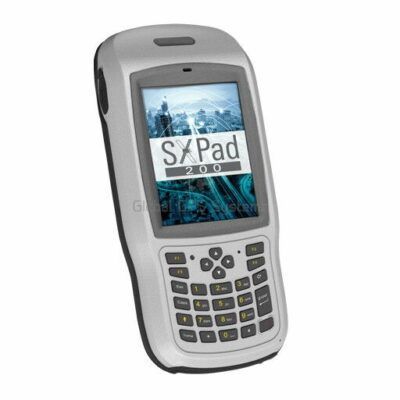

  • Data collector. You might need a tablet or controller to run your software on. The type of tablet depends on which software you have choosen as some are Android based and some are Windows.
  • Bracket and Holders. These are used to connect your tablet to your surveying pole so the whole set is easier to handle.
  • Surveying pole. In order to get the best performance out of your receiver you want to minimise the disturbances around you and give it a clear sight to the satellites above. That why its recommended attaching your receiver on a 2 meter minimum surveying pole. These come in fixed rods and in telescopic rods.

Rover/Base setup

When you don’t have access to an  RTK network you might have to setup your own base station in order to receive corrections. These are the accessories you might need besides the receiver itself:

  • A second RTK GNSS receiver. preferably from the same brand. If you already have another one, then make sure they run on the same frequency.
  • Surveying software. Your receiver provides you with the coordinates you need but you still need surveying software in order to process this information. Which software you need depends on your needs. We recommend keeping it simple and don’t pay for things you don’t need. Having that said, if you do have to do complicated surveying work make sure you get the right software. Some recommended options are Apglos, Carlson, Aplitop and FieldGenius. If you need help, feel free to contact us by phone or via the chat below!
  • Data collector. You might need a tablet or controller to run your software on. The type of tablet depends on which software you have choosen as some are Android based and some are Windows.
  • Bracket and Holders. These are used to connect your tablet to your surveying pole so the whole set is easier to handle.
  • Surveying pole. In order to get the best performance out of your receiver you want to minimise the disturbances around you and give it a clear sight to the satellites above. That why its recommended attaching your receiver on a 2 meter minimum surveying pole. These come in fixed rods and in telescopic rods.
  • Tripod and Tribrach. These are needed to setup your base station with the second receiver. The Tripod gives good stability so errors in sudden movements of the base station are avoided.
  • External Radio. Most RTK GNSS receiver have an internal UHF radio build in. However, sometimes the power output is not strong enough to give you the workable distance you need and an external radio required. Internal radios can go up to 3 Watts that can work up to 8km. External radios can easily achieve 35 Watt outputs, thereby increasing your working range.

Emlid ReachView application

Free ReachView Surveying app

The easiest to use software for data collection that is available both for Android and iOS. With ReachView, you can collect and stakeout points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.

Point collection:
create projects, save points, and export in industry standard formats

Record each position as a point with centimeter precise coordinates. Export projects and open them in GIS or CAD software like AutoCAD, ArcGIS, QGIS, and others.

Formats: DXF, CSV, GeoJSON, ESRI Shapefile

Stakeout:
Find points’ position on the ground

Stakeout is used to find exact physical locations of points. They can be collected in ReachView or imported from other CAD or GIS software. Process of stakeout in ReachView has two steps: map view and bulls-eye. Map’s purpose is to help you navigate to points on long distances. When you get closer than 40 cm to the point, bulls-eye turns on to make it easier for you to visually match receiver and point.

Formats: CSV, DXF and GeoJSONs

Logging in RINEX:
record raw data, position, and base correction logs

Record raw data, position and base correction logs. Point collection and recording of RAW data are independent processes and can be used simultaneously. ReachView has a simple and intuitive interface for logging configuration and control.

We provide our version of RTKLib for PPK. It’s free and can be downloaded from our docs.

  • 16 GB storage
  • 160+ days of logging at 1 Hz

PPP for OPUS

RINEX raw data logs are compatible with OPUS, CSRS-PPP, AUSPOS, and other PPP services so you can now get centimeter-precise results in any place on Earth. Process RINEX files in an online service and get position with absolute accuracy.

  • Reach RS2 gets fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.
  • RINEX raw data logs are compatible with PPP services so you can now get centimeter-precise results in any place on Earth. Process RINEX files in an online service and get position with absolute accuracy.
  • Reach RS2 features a power-efficient 3.5G HSPA modem with 2G fallback and global coverage. Now corrections can be accessed or broadcasted over NTRIP independently, without relying on Internet connection on your phone.
  • Up to 22 hours of autonomous work when logging data and up to 16 hours as a 3G rover, even in cold weather—no more need to carry spare batteries with you. Reach RS2 can charge from a USB wall charger or a power bank over USB-C.
  • Reach provides data in standard NMEA that is used by most GIS apps. Simply connect your device to Reach over Bluetooth or with a cable, and turn on “Position output” in ReachView.
  • Reach is able turn on and off in sync with an external battery connected over RS-232. This helps when the power button is hard to reach. For example, if the receiver is placed on the roof of a tractor.
  • Reach RS2 needs a base station as a source of corrections. That’s a requirement for centimeter accuracy in RTK and PPK. Base might be either another Reach RS2 receiver or NTRIP service. VRS is also supported. Reach RS2 works seamlessly with other Reach receivers over any link.

Comparable receivers from other brands

Global GPS Systems is currently in the process of independantly testing every single receiver on the market. In collaboration with an highly recognised surveying company we will be testing all receivers on its performance in increasingly more difficult environments, accuracy claims, Time to first fix, cold start and more. Want to know more about this? Please Contact us.
