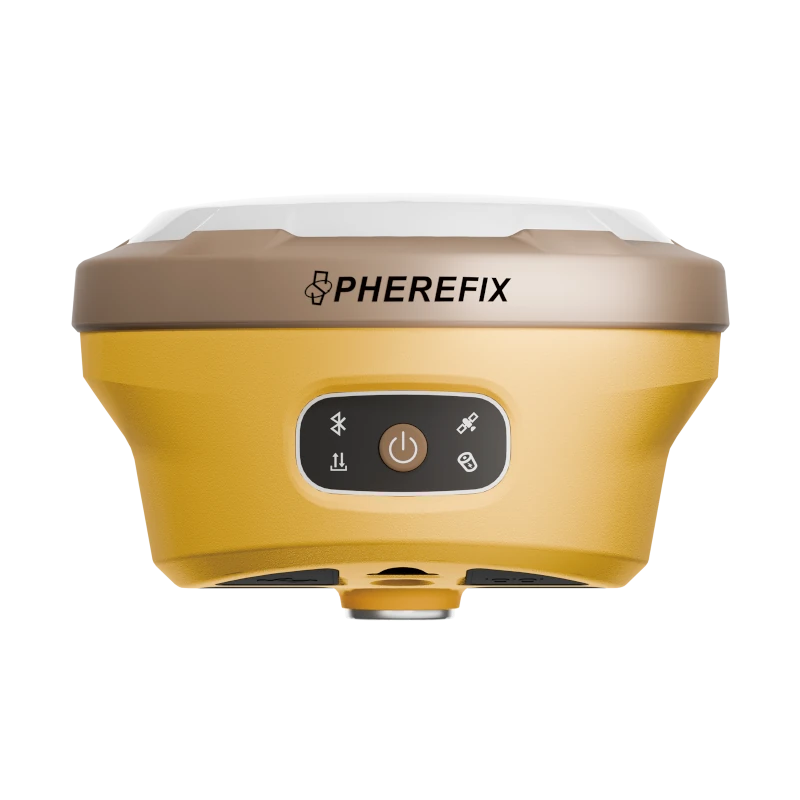

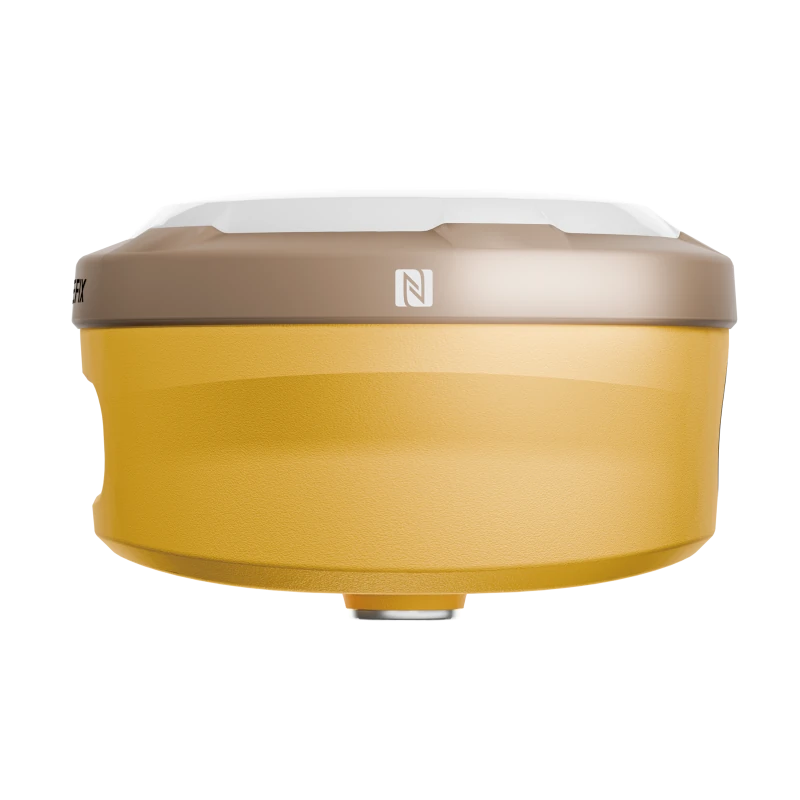

Spherefix SP30 SE

Below you will find a comprehensive overview of this Spherefix SP30 SE Rover Set.

Spherefix SP30 SE – Next-Generation GNSS Receiver for Precision Surveying

The Spherefix SP30 SE is a powerful and multifunctional GNSS receiver designed to deliver unmatched accuracy and reliability in the field. Built on a Linux operating system, it supports receiving all satellite signals while ensuring advanced performance with a new-generation measurement engine.

Whether you’re conducting tilt surveying, topographic mapping, or high-precision positioning, the Spherefix SP30 SE combines cutting-edge technology with a lightweight, portable design that makes fieldwork smarter and more efficient.

Key Features of the Spherefix SP30 SE

• Supports all satellite signals: GPS, GLONASS, BDS, Galileo, QZSS, SBAS, and NavIC (IRNSS)

• 1408 high-speed channels for real-time, precise positioning

• 5W built-in digital radio with a transmission range up to 16km in open areas

• 4G full-netcom modem for seamless connectivity in diverse environments

• Ultra-long battery life with over 24 hours of continuous operation in Rover mode

• Rugged design with IP68 protection, shock resistance, and reliable operation from -20℃ to +60℃

Unmatched GNSS Capabilities

The Spherefix SP30 SE integrates a high-precision positioning module that configures 1408 high-speed channels, enabling it to support BDS B1I, B2I, B3I, B1C, B2a, B2b (PPP-B2b), GPS L1C/A, L1C, L2C, L5, GLONASS L1, L2, L3, Galileo E1, E5a, E5b, E6 (PPP-E6), QZSS L1, L2, L5, SBAS, and NavIC (IRNSS). This ensures maximum compatibility and reliability for professional surveying and mapping projects.

Connectivity and Communication

Thanks to its 4G full-netcom modem, Bluetooth, and Wi-Fi integration, the Spherefix SP30 SE guarantees uninterrupted communication between devices. When used as a base station, its 5W digital transmission radio extends communication up to 16km, ensuring accuracy and stability in demanding terrains.

Built for Endurance and Fieldwork

Equipped with a 7.4V, 10000mAh large-capacity battery, the Spherefix SP30 SE provides more than 24 hours of continuous operation, reducing downtime during long working days. Its rugged IP68-certified design withstands dust, water, and accidental drops up to 1.5 meters, making it the perfect companion for field professionals.
