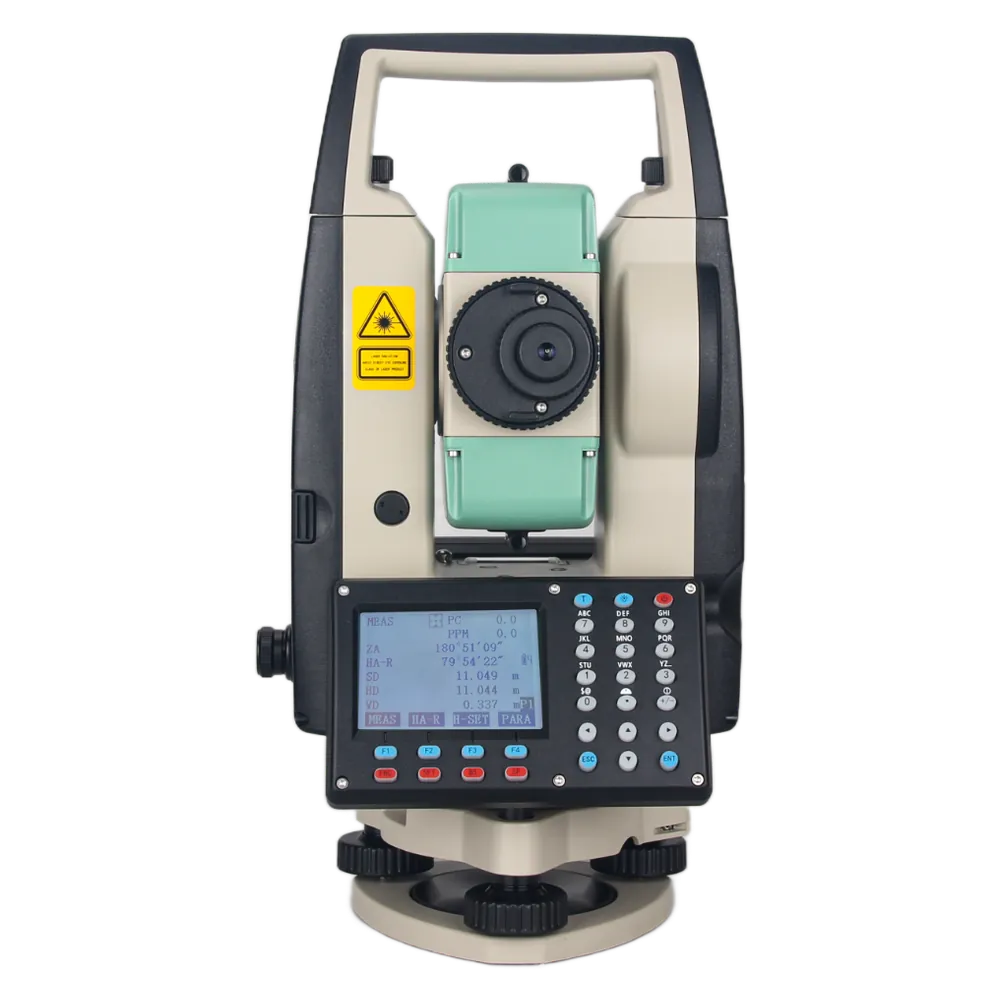

SingularXYZ STS2 2 Second Total Station with 1000m Reflectorless Range

The SingularXYZ STS2 is a professional manual total station designed for precise distance measurement, angle measurement, land surveying and construction layout. It combines electronic distance measurement (EDM), 2-second angular accuracy, a 30x optical telescope and dual-sided LCD displays. The STS2 supports reflectorless measurements up to 1,000 meters and prism measurements up to 5,000 meters. With Bluetooth connectivity and compatibility with SingularPad surveying software, it is suitable for topographic surveying, cadastral measurement, construction stakeout, civil engineering and infrastructure projects.

The SingularXYZ STS2 features 2-second angular accuracy, reflectorless distance measurement up to 1,000 meters, single-prism measurement up to 5,000 meters and a 30x magnification telescope. Additional features include dual 2.7-inch LCD displays, illuminated alphanumeric keyboards, a laser plummet, dual-axis electronic compensation, Bluetooth connectivity, USB data export and internal storage for 16,000 survey points. It also offers up to 8 hours of battery operation, IP54 environmental protection and integration with SingularPad field surveying software.

The SingularXYZ STS2 provides an angular measurement accuracy of 2 arcseconds (2"). Its electronic distance measurement system offers an accuracy of 2 mm + 2 ppm when measuring with a reflector or prism and 3 mm + 2 ppm in reflectorless mode. These specifications make the instrument suitable for professional surveying and construction layout applications. Actual measurement accuracy depends on atmospheric conditions, instrument setup, target characteristics, measurement distance and survey procedures.

The SingularXYZ STS2 supports distance measurements up to 1,000 meters in reflectorless mode and up to 5,000 meters when using a single prism. Reflectorless measurement allows operators to measure suitable surfaces without placing a prism at the target location. Prism measurements are useful for longer distances and conventional surveying workflows. Actual measurement range depends on atmospheric visibility, target reflectivity, prism configuration and environmental conditions.

Reflectorless measurement allows the SingularXYZ STS2 to measure distances directly to suitable surfaces without using a prism. It supports measurements up to 1,000 meters with a specified accuracy of 3 mm + 2 ppm. Prism measurement uses a surveying reflector to return the EDM signal and supports distances up to 5,000 meters with an accuracy of 2 mm + 2 ppm. Reflectorless mode is useful for inaccessible points and building surfaces, while prism mode is commonly used for longer-distance surveying, control networks and construction layout.

The SingularXYZ STS2 is a manual total station. Operators aim the telescope, identify targets and perform measurements using the instrument controls or compatible field software. It includes dual-sided keyboards and displays to support manual surveying workflows. The STS2 does not provide the automatic target tracking, motorized rotation or robotic operation found in dedicated robotic total stations. It is designed for professionals who need accurate optical surveying with straightforward field operation.

The SingularXYZ STS2 is designed for land surveyors, construction surveyors, civil engineers, infrastructure contractors, cadastral surveyors and geospatial professionals. Typical applications include topographic surveying, property boundary measurement, construction layout, building measurement, road engineering and control point surveys. Its combination of precise optical measurements, reflectorless EDM and field surveying software makes it suitable for projects requiring accurate coordinate and elevation measurements.

Yes. The SingularXYZ STS2 is suitable for topographic surveying, land measurement and terrain mapping. Surveyors can measure horizontal angles, vertical angles and distances to determine the coordinates and elevations of survey points. The collected measurements can be used to map terrain features, buildings, roads, boundaries and existing infrastructure. When connected to SingularPad software, the STS2 supports point surveying, coordinate management and other field measurement workflows.

Yes. The SingularXYZ STS2 supports construction stakeout, building layout and engineering measurement. With compatible SingularPad software, operators can use point and line stakeout functions to locate planned positions from project coordinates. Typical tasks include setting out foundations, structural grid lines, building corners, columns, walls and other construction features. Its 2-second angular accuracy and millimeter-level EDM specifications support precise measurement, although final setting-out tolerances depend on the complete survey methodology.

Yes. The SingularXYZ STS2 can be used to measure boundary markers, property corners, distances and angles during cadastral and land subdivision surveys. Its reflectorless and prism-based measurement capabilities make it suitable for collecting coordinates and establishing or checking survey control. Boundary determination must follow applicable surveying regulations, legal records and local coordinate reference requirements. The STS2 provides measurement capabilities but does not independently establish the legal position of a property boundary.

Yes. The SingularXYZ STS2 is suitable for road construction, civil engineering layout and transportation infrastructure surveying. It can be used to measure existing ground features, establish control points, set out design positions and verify construction geometry. SingularPad software also supports road stakeout and coordinate calculation workflows. These functions are useful for road alignments, drainage installations, utility works, foundations and other infrastructure projects requiring accurate optical measurements.

Yes. The SingularXYZ STS2 uses optical angle measurement and electronic distance measurement rather than satellite positioning to determine survey points. It can therefore operate in areas where GNSS reception is obstructed, such as near tall buildings, beneath bridges or inside suitable indoor environments. The instrument requires a clear line of sight to the target and a properly established survey station. Known control coordinates or an appropriate local coordinate system are needed when measurements must be connected to a specific reference system.

The SingularXYZ STS2 includes a telescope with 30x optical magnification, a 1-degree 30-minute field of view and a minimum focusing distance of 1.5 meters. The telescope provides an upright image and is designed for accurate manual sighting of surveying prisms and other targets. Its optical magnification is useful for identifying targets over longer distances during topographic surveys, construction layout and control measurements.

Yes. The SingularXYZ STS2 includes a dual-axis electronic compensator using a liquid-electric sensor. The compensator has a specified working range of ±6 arcminutes and a correction resolution of 1 arcsecond. It helps correct small instrument tilts during surveying and contributes to reliable angle measurements. Proper instrument leveling and a stable tripod setup remain essential because the compensator cannot correct large setup errors or unstable positioning.

Yes. The SingularXYZ STS2 includes a laser plummet as standard equipment for centering the total station over a survey point. The laser plummet uses a 635 nm Class 2 laser with five adjustable brightness levels and a specified centering accuracy of ±1.5 mm at a distance of 1.5 meters. An optical plummet is also available as an alternative configuration. Accurate centering is important when establishing survey stations and performing control measurements.

The SingularXYZ STS2 features two 2.7-inch LCD displays, one on each side of the instrument. Both sides include illuminated alphanumeric keyboards with 29 keys. This dual-sided arrangement allows operators to view measurement information and control the instrument from either telescope position. The displays have a specified resolution of 160 × 96 pixels. Backlit keys help improve usability in low-light surveying conditions.

The SingularXYZ STS2 offers different EDM measurement modes. Its specified tracking measurement time is approximately 0.2 seconds, while fine measurement takes approximately 1.2 seconds under reference conditions. Tracking mode is useful when monitoring changing distance readings or positioning a prism during stakeout. Fine measurement is intended for precise observations. Actual measurement time can vary depending on target conditions, visibility and the selected measurement mode.

The SingularXYZ STS2 weighs approximately 6.0 kg and measures 206 × 200 × 353 mm. Its housing integrates the optical telescope, electronic distance measurement system, dual-sided displays, keyboards, compensator and laser plummet. The complete surveying setup also requires suitable mounting equipment, such as a tripod and tribrach, together with any prisms or accessories needed for the intended application.

The SingularXYZ STS2 uses a rechargeable 7.4 V lithium battery with a specified operating time of up to 8 hours per battery under reference conditions. The manufacturer identifies an additional backup battery for extended field operation. The instrument has an IP54 dust and water protection rating and an operating temperature range of -20°C to +50°C. IP54 provides protection against limited dust ingress and splashing water but does not make the instrument waterproof or suitable for immersion.

The SingularXYZ STS2 is compatible with SingularPad field surveying software. SingularPad supports optical surveying, point measurement, coordinate management, construction stakeout, CAD-related workflows and surveying calculations. When connected to the STS2 through Bluetooth, compatible Android controllers can be used to manage survey projects, collect measurements and perform calculations. SingularPad also supports compatible SingularXYZ GNSS receivers, allowing optical and GNSS measurements to be managed within a coordinated surveying workflow.

Yes. The SingularXYZ STS2 can be used alongside compatible RTK GNSS receivers through SingularPad field surveying software. This allows surveyors to combine optical total station measurements and GNSS survey points within the same project and coordinate reference system. GNSS can be used for measuring suitable open-sky locations, while the total station can measure points where satellite reception is limited or a clear optical measurement is preferred. The STS2 itself does not contain a built-in GNSS receiver.

Yes. The SingularXYZ STS2 supports Bluetooth communication for connecting to compatible controllers running SingularPad surveying software. Bluetooth connectivity allows measurement data to be exchanged between the total station and the field controller without a physical data cable. This enables operators to manage points, perform stakeout and store survey results directly within a software project. Connection compatibility depends on the controller, software version and Bluetooth configuration.

The SingularXYZ STS2 provides internal storage for up to 16,000 survey points. This allows operators to record measurement information directly on the instrument during fieldwork. When used with SingularPad software, measurement data can also be stored and managed through the connected controller. Storage requirements depend on project size and the selected workflow, so survey data should be transferred and backed up regularly.

Yes. The SingularXYZ STS2 supports data export through a USB flash drive. This provides a convenient method for transferring recorded survey measurements from the instrument for further processing, documentation or archiving. When using SingularPad, additional software-based data management and file-sharing functions are available. Supported export formats depend on the selected workflow and software configuration. Users should verify coordinate systems and data formatting before importing measurements into CAD or GIS software.

Yes. When connected to compatible SingularPad field surveying software, the SingularXYZ STS2 supports CAD-related surveying, point and line stakeout, coordinate conversion and common coordinate geometry (COGO) calculations. These functions help surveyors transfer design positions to the field, calculate distances and directions, and work with coordinate-based construction information. Available tools include project management, point databases, area and perimeter calculations, and supported road stakeout workflows. Accurate stakeout requires correct station setup, orientation and coordinate system configuration.
