Singular XYZ Orion One AR

Singular XYZ Orion One AR Product Review

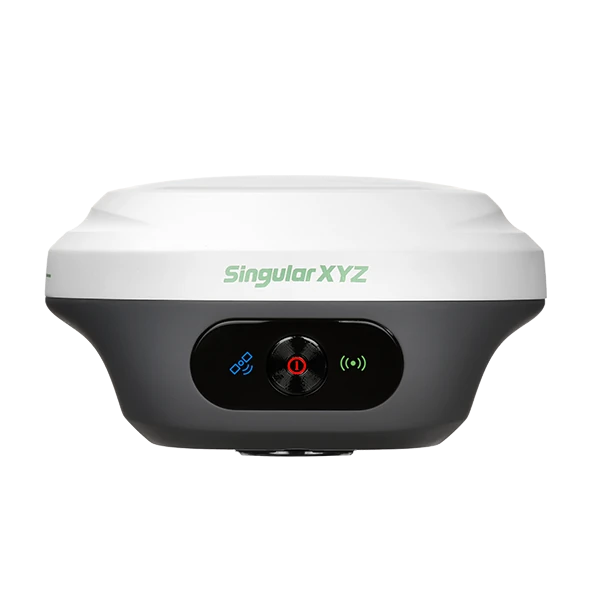

Singular XYZ Orion One AR: Compact Precision and AR Stakeout in Your Hand

The Singular XYZ Orion One AR is a groundbreaking surveying solution that brings augmented reality (AR) stakeout directly to your fieldwork. With its 2MP starlight-grade camera and advanced AR guidance system, surveyors can visually identify and mark locations with unmatched accuracy—even in low-light conditions. Compared to traditional stakeout methods, the Orion One AR boosts efficiency by more than 50%, ensuring projects are completed faster and with greater precision.

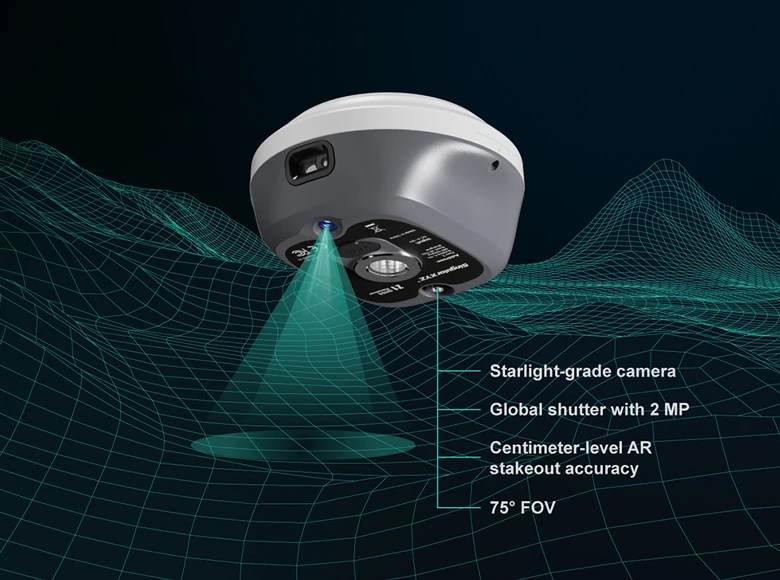

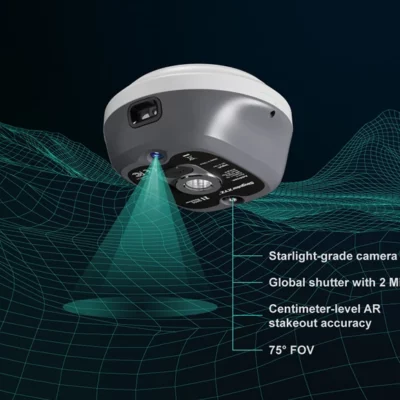

Visual AR Stakeout with Advanced Camera Technology

Equipped with a 75° field of view, the Orion One AR’s camera delivers intuitive AR guidance. This makes visual stakeout easier and more accurate, helping both experienced professionals and beginners achieve centimeter-level results in real-world environments.

Palm-Sized Power: Mini in Hand, Mighty in Survey

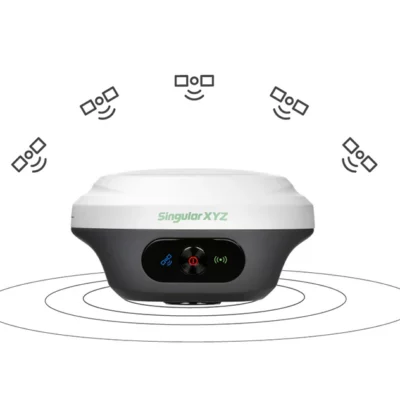

Despite its compact Φ107 mm × 58.7 mm design, the Singular XYZ Orion One AR is packed with cutting-edge technology. Its full-constellation GNSS tracking ensures reliability even in dense forests, urban canyons, or areas with heavy interference. The portable build reduces surveyor fatigue while maintaining top-tier performance.

Immersive AR Experience with Higher Efficiency

Surveyors can directly visualize stakeout points in the field without needing specialized training. Thanks to AR stakeout, efficiency increases by over 50%, eliminating guesswork and speeding up workflows.

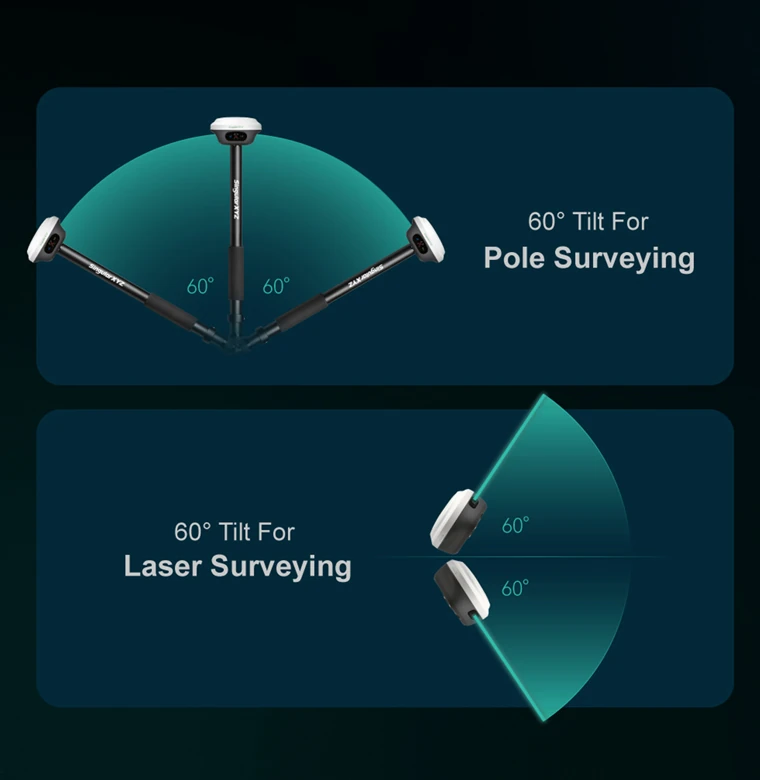

High-Performance Tilt Surveying

With its integrated IMU sensor, the Orion One AR supports up to 60° tilt range. Whether using pole surveying or AR visual stakeout, this feature enhances flexibility and reduces time spent on alignment, ensuring precise results every time.

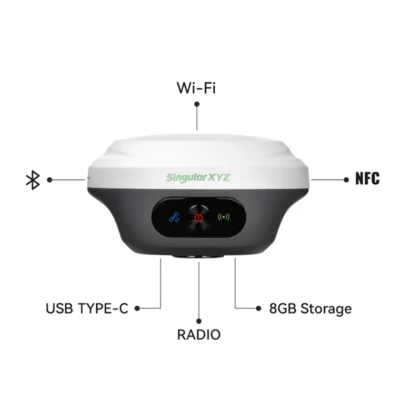

Versatile Connectivity and Transmission Options

The device supports NFC, Bluetooth, WiFi, and USB Type-C connections, making data transfer seamless. With 8GB onboard storage and a built-in web UI, managing and accessing data is quick and user-friendly.

Rugged IP67 Protection for Field Durability

Built to last, the IP67-rated casing ensures protection against dust, water, and accidental drops. The Orion One AR remains reliable under the toughest field conditions, offering uninterrupted operation.

Flexible Work Modes for Every Surveying Need

The Singular XYZ Orion One AR adapts to multiple use cases with ease:

• Static Measurement Mode

  • Record static data with 8GB storage, downloadable via the web UI.

• Internal Radio Mode

  • Achieve up to 15km transmission range with its enhanced UHF radio.

• PDA CORS Mode

  • Connect through Bluetooth and access local CORS networks directly via PDAs.

Why Choose the Singular XYZ Orion One AR?

The combination of compact precision, GNSS full-constellation tracking, and visual AR stakeout makes this device an indispensable tool for modern surveyors. With unmatched versatility, reliability, and speed, it’s the ultimate choice for professionals seeking accuracy in challenging environments.
