South DSZ2

Continue with Google

Ultra clear lens for long range observation
Newly developed magnetic damping compensator
Reliable performance in extreme temperature
Excellent shockproof test performance top dust proof and waterproof capability IP65

Datasheets and manuals

Datasheet

South DSZ2 Datasheet

RECOMMENDED DATA COLLECTORS:

RTK FIX T1

Rated 5.00 out of 5

South H6

Rated 4.80 out of 5

South HR842

Rated 4.67 out of 5

Carlson RT4

Rated 5.00 out of 5

SXPAD 1500

RECOMMENDED SOFTWARE:

SurvX

Rated 4.63 out of 5

38%

Microsurvey FieldGenius for Android

Rated 4.63 out of 5

25%

MicroSurvey FieldGenius

Rated 4.67 out of 5

Stonex Cube-a

Rated 5.00 out of 5

Aplitop TcpGPS

Rated 5.00 out of 5

Carlson SurvPC

RECOMMENDED ACCESSORIES:

RTK FIX

Rated 4.92 out of 5

Telescopic survey pole (carbon)

Rated 4.85 out of 5

Controller bracket

Rated 4.75 out of 5

8 inch tablet bracket with pole mount

Rated 4.67 out of 5

Surveying Bipod 2 legs

Rated 4.67 out of 5

Smartphone bracket with pole mount

Rated 4.67 out of 5

South DSZ2

Continue with Google

SKU: South-DSZ Categories: Auto leveller, Lasers & levellers Tags: auto level, leveller, mm, South

Brand:South

Worldwide Shipping From The Netherlands

100% Shipping Insurance on Damage and Loss

Experts in Import / Export / Tax and Duties

Premium Support from Product Experts

Buyers Protection and Warranty on all Products

Global GPS Systems

What Our Clients Say

4.74 store rating (536 reviews) | 4.65 product rating

Need Help? Call us!

+31 (0)35 205 7939

Description

South DSZ2 Product review

The South DSZ2

DSZ

Compensator

compensator

The center technology of auto level is the compensator.
Hi-Q electronic wire from Switzerland ensure the stability of compensator, it will not be bent or deformed in your longterm working.
The sheet metal at the bottom is the cornerstone of the whole compensator it keeps the high accuracy for leveling.

Metal protection

Excellent manufacturing design improve the quality to achieve the goal.
the metal cover can isolate the effects from external magnetic field for better performance.

Aluminum axis

The quality of raw material is the guarantee for product. after the hardening treatment, The aluminum axis kee a high consistency to ensure the wear resistance.

Barcode Staff for Digital Level

1new

32X high resolution telescope
Magnetically damped compensation
+0.3″ compensator accuracy
0.5mm standard deviation with micrometer Fp1
Wearable aluminum axis
Outstanding protection in IP65

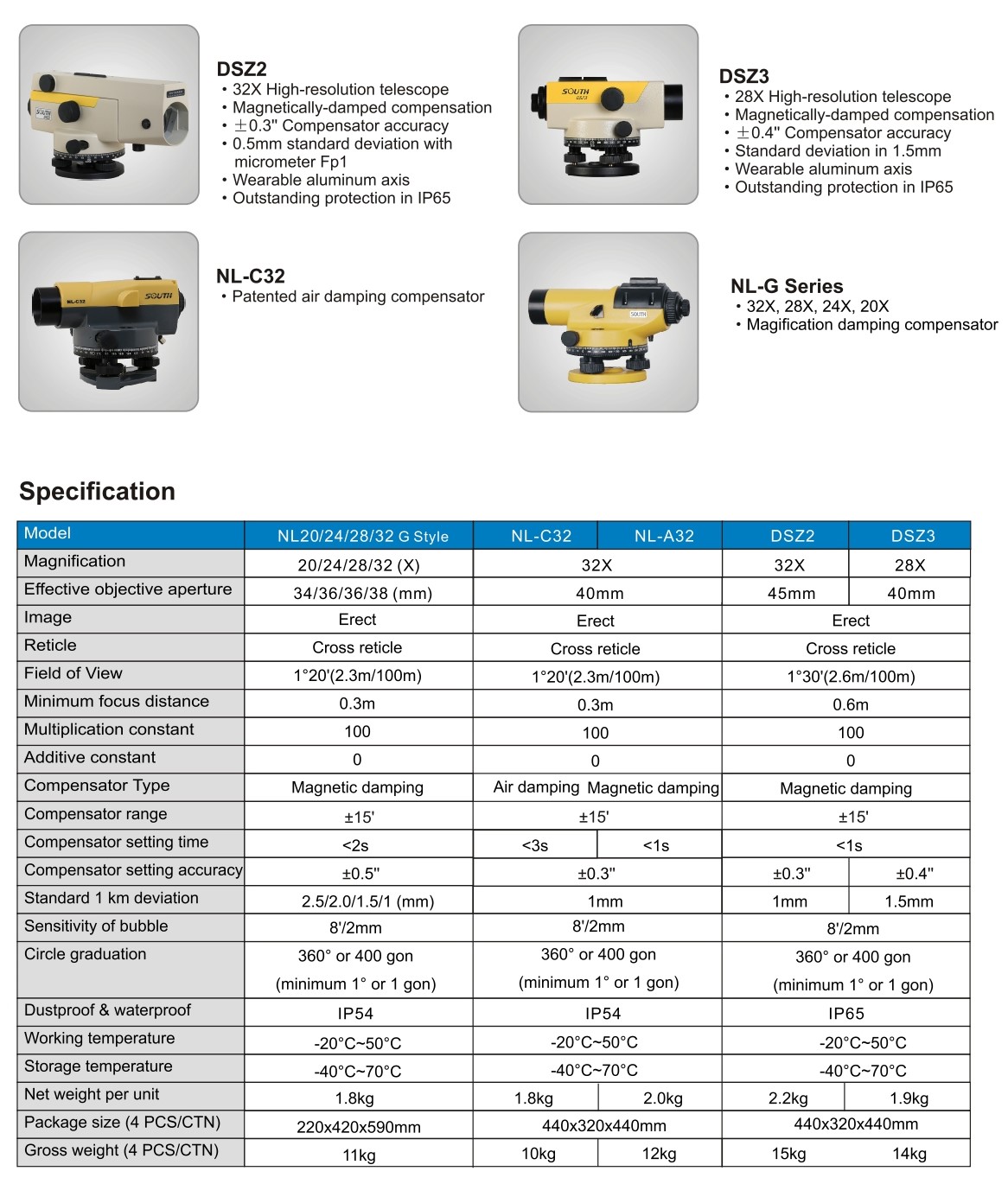

Auto Level	Magnification	32x
	Effective Objective Aperture	45mm
	Image	Erect
	Reticle	Cross Reticle
	Field of View	1°30′ (2.6m /100m)
	Minimum Focus Distance	0.6m
	Multiplication Constant	100
	Additive Constant	0
	Compensator Type	Magnetic Damping
	Compensator Range	±15′
	Compensator Setting Time	＜1s
	Compensator Setting Accuracy	±0.3″
	Standard 1km Deviation	1.0mm
	Sensitivity of Bubble	8′ /2mm
	Circle Graduation	360° or 400 gon (Minimum 1°or 1 gon)
	Protection Class	IP65
	Working Temperature	-20℃ ～ +50℃
	Storage Temperature	-40℃ ～ +70℃
	Net Weight per Unit	2.2kg
	Package Size (4 PCS/CTN)	465×340×445(mm)
	Gross Weight (4 PCS/CTN)	15kg
